Topics on events
Event definitions can now be associated with specific topics, to filter and group events by relevance.
Topics can be used into Algorithms to process only specific events, such as those that have Health or Quality as a topic. In the DPS you can filter and group events, this allows you to create very highly focused pages that include only data with regard to a reference topic (e.g. Maintenance).

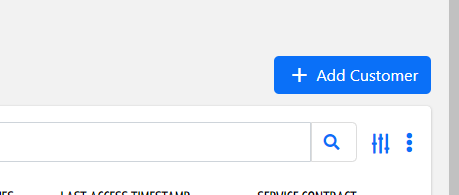

Add Button component
Instead of having the add button directly into the list widgets (e.g. Customer List), with the Add Button component, you can place it as standalone and customizable button, for instance into the control bar section of the page.

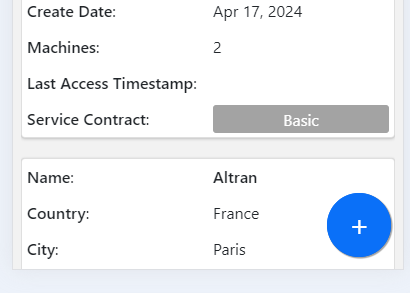

Or even, in the case of mobile access, as a floating button in the list.

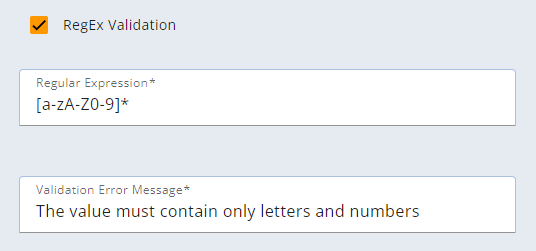

RegEx based constraint on properties
In the property definition you can define a constraint based on regular expression.

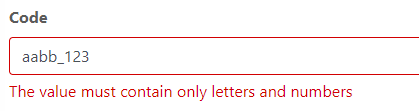

This will prevent DPS users from entering values that are not valid for the intended format.
Dictionary labels into placeholders
When defining notification messages, you can use placeholders based on metric dictionary or thresholds. For instance, you can include the label or severity label associated to a certain metric value. In this way, the notification received by the DPS users will be more effective and easy to understand.
// TEMPLATE
The machine is in ${metrics.status.valueLabel} status.
The temperature of ${metrics.temperature.value}°C is ${metrics.temperature.valueSeverity}.
// RESULT MESSAGE
The machine is in ERROR status.
The temperature of 55.6°C is CRITICAL.
Minor console improvements
- The control bar template can be defined at the view and page level to be inherited by each sub-page.
- When editing a simple condition of an event, the selection of metrics has been improved, making it easier to select even when there are hundreds of metrics.
- The metrics label is now visible directly on the metrics list pages. This makes it easy to find metrics, even when using the label.
