During operation, the machine may generate events that relate to its normal operation, but which are noteworthy to be tracked through the use of operation events:
- Information: events that normally occur during product operation, for instance, the product has started a new processing, completed a cycle, been shut down or started up.
- Advice: events that do not relate to the operation of the product, but can be used to give advice to the operator. For example, reduce the speed for a higher quality of result, or, every N processing clean the tool.
An Operation event is described by:
-
Name: the name of the event (e.g. JOB_STARTED).
-
Title: the user-friendly name of the event (e.g. Job Started).
-
Description: the event description (e.g. Scheduled job T-123 started).
-
Group: the name of the group to which this event belongs.
The group can be used to filters and groups events into the DPS pages. -
Topics: the set of topics to which this event relates (e.g. CONNECTION, UPTIME, MAINTENANCE).
Topics are predefined and can be used to filters and groups events into the DPS pages. -
Active/Clear Conditions: the metric/property-based conditions used to activate/deactivate the event instance.
In case of property-based condition, you can use only properties of type DATE. - Troubleshooting: a set of remedies the user can follow to fix the problem by himself.
-
Options: a set of variables that can be used to let the user customize the thresholds for event triggering.
- Alert: how to notify the event to the users.
Note that a OPERATION event, by default is associated to INFORMATIONAL severity and INFORMATION category.
Creating an Operation event

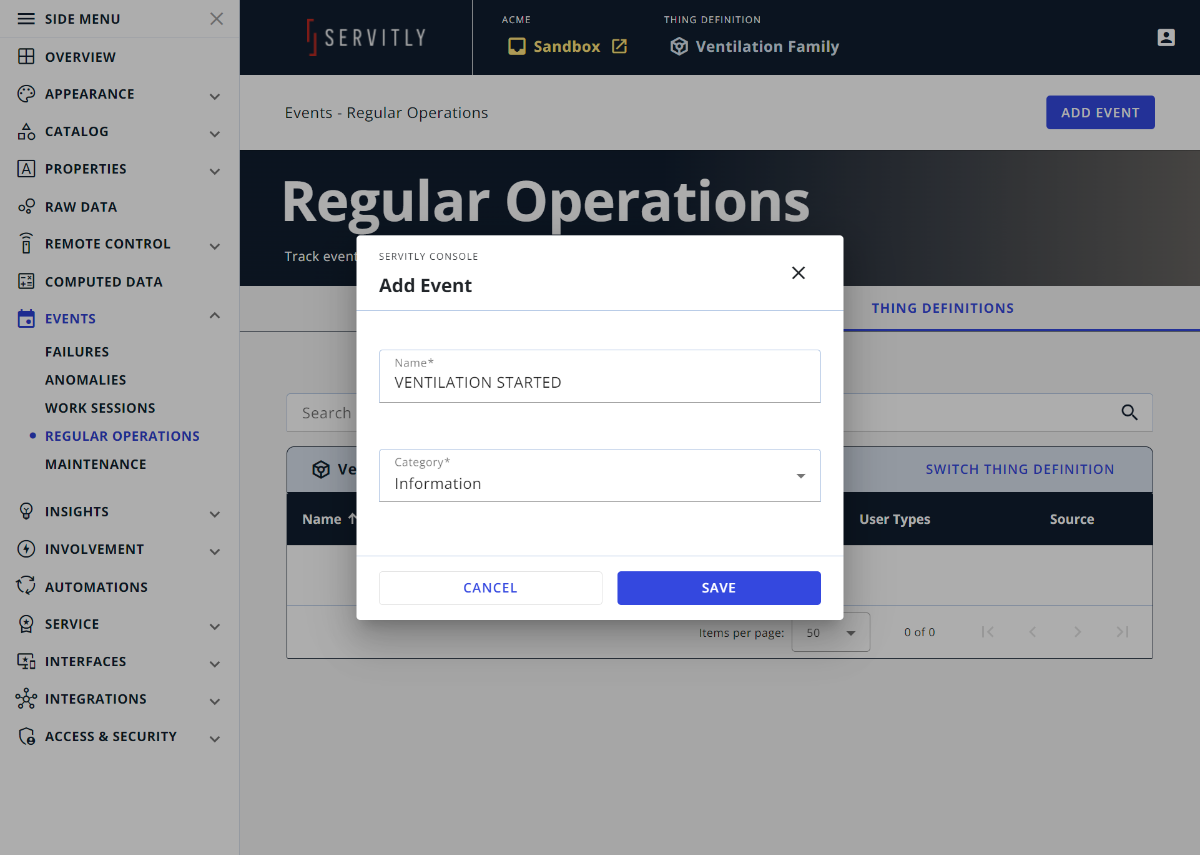

To add a new Operation event, you should:
- Enter the Events / Operation page.
- Select the Location or Thing Definitions tab, depending on where you want to create the event.
- In case of Thing Definition, select the Thing Definition to edit.
- Press the Add Event button.
- Provide the required information.
- Press the Save button and edit the additional information, if needed.
Editing an Operation event
An Operation event is described by the following sections:
General
The main section describing the alert through these properties:
-
Name: specifies the name of the alert, it is a free value (e.g. TEMP WARNING).
-
Title: the alert shown title within the alert list.
-
Description: the text describing the occurred problem.
-
Severity: fixed to INFORMATIONAL.
-
Category: can be INFORMATION or ADVICE.
By selecting the Limit the alert visibility depending on the user type checkbox, it is possible to profile the alert visibility to a specific set of User Types.
By selecting the Limit this event computation on a specific time period checkbox, it is possible to define a Start and End day of the year when the event can be activated.
Within the event Title, and Description it is possible to use placeholders to include information about the thing, the event, and measures.
Dashboard
- Event Template: the template used to display the event details in a dedicated dashboard.
Active Condition
This section allows defining when the event must be activated.
Note that, an event is evaluated periodically and is triggered only when the active condition changes from false to true and remains true for at least one evaluation interval (e.g. 60 seconds). This means that metric values with a duration of less than one evaluation interval (e.g. 60 seconds) may not be detected in order to correctly trigger the event.
In addition, you can specify the Minimum Active Time the condition must remain true before activating the event.
The condition can be defined by selecting between:
- Manual: allows specifying whether the event must be manually activated by using the Manual Event Reporting widget. Once the event has been manually activated, it can be cleared automatically by using the Clear Condition or manually by using the Clear action within the Active Alert List widget.
- Simple: you can select a metric, predicate, and specify a value that can be static (e.g. Temperature 1 > 100 °C), read from another metric (e.g., Temperature 1 > Temperature 2), or read from a property (e.g. Temperature > thing.properties.maxTemperature).
- Expression: you can select one or more metrics and properties and combine the values into a mathematical expression (e.g. (temp1 + temp2) / 2).
- Wear Based: it is possible to select a Wear Metric that is checked periodically to see if the wear level has reached the threshold for which a part replacement is suggested. No further information needs to be specified for this type of condition; the system automatically uses the standard usage threshold specified in the wear metric.
Clear Condition
This section allows defining when the event must be cleared.
If unspecified, the negated active condition is used instead.
The condition can be defined by selecting between:
- Simple: you can select a metric, predicate, and specify a value that can be static (e.g. Temperature 1 > 100 °C), read from another metric (e.g., Temperature 1 > Temperature 2), or read from a property (e.g. Temperature > thing.properties.maxTemperature).
- Expression: you can select one or more metrics and properties and combine the values into a mathematical expression (e.g. (temp1 + temp2) / 2).
Technical Description and Remedies
Here you can describe more technically the event that has occurred and which are the causes and impacts. Optionally, you can provide a set of remedies, the user can follow to fix the problem by itself.
Remedies are presented to the user through the Thing Troubleshooting widget.
Options
This section allows defining options to be used within the event definition and whose value can be redefined by the end-user within the page by suing the thing-options widget.
For more details, see the Options article.
Alert
This section allows defining whether the Event must be notified to users through an Alert.

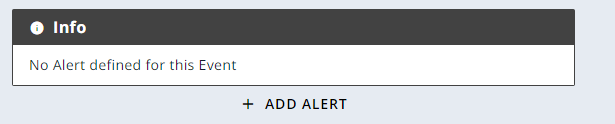

By clicking the Add Alert Button, you can create a new Alert for the event.
